Product introduction

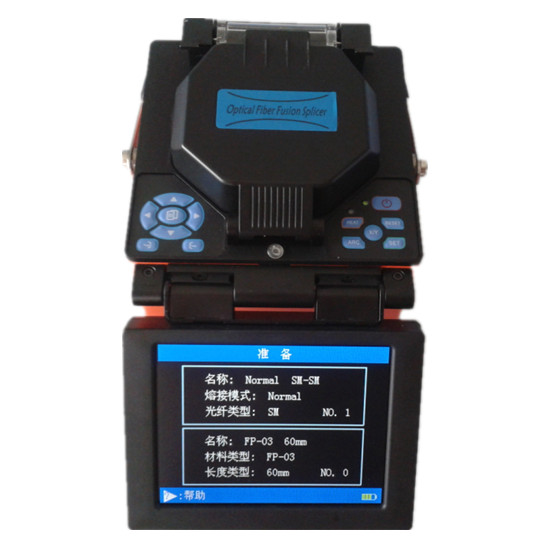

Integrated with the latest optical, mechanical and electrical technologies, this product applies embedded operating system platform, large screen LCD display, precise fiber core positioning mechanism and high-speed digital image processing. With the features of compact & portable shape, friendly & simple interface as well as rapid & accurate welding, it can be widely used in optical fiber & cable engineering and its maintenance in the communication fields including telecommunication, broadcasting, railway, petrochemical industry, electric power, army and public security etc. as well as in the teaching and scientific research of research institutes.
Product features
∣Embedded operating system with complete interfaces, supporting remote maintenance;

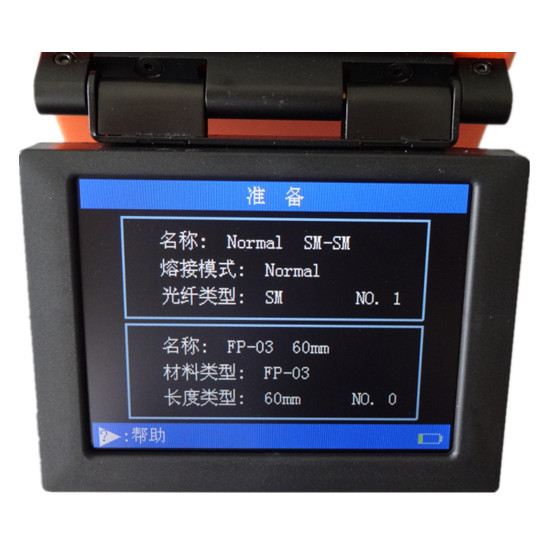

∣High-performance 5.7-inch color LCD display screen, sharp image, reversible display;
∣Typical splicing time: 9s; tube typical heating time: 30s;
∣fiber image magnification: 300 times (X or Y), 150 times (X and Y);
∣Large-capacity lithium battery (11600mAh), supporting splicing and heating for 240 times when fully charged;
∣Multi-functional fixtures for splicing of various single-core cables, rubber-covered cables and various connectors;
∣Segmented heater, suitable for the self-connecting and inter-connecting protection of optical fibers including rubber-covered wires, tail fiber, rapid thermal joints and tightly packaged fiber etc.
|
Specifications |
|
|
Applicable fiber |
SM, MM, DS, NZDS |
|
Image alignment |
PAS |
|
Fiber diameter |
Cladding diameter :80-150 μm Coated fiber diameter: 100-1000 μm |
|
Fiber cleaved length |
8-16 μm, coated fiber diameter 250 μm, 16 (standard) or 8-16mm (optional), coated fiber diameter 250 μmm-1000 μm |
|
Actual average splice loss |
0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS) |
|
Typical splicing time |
9 s (standard SM) |
|
Return loss |
＞60dB |
|
Splicing program |
53 groups are preset in factory, 40 groups are set by users |
|
Estimated loss |
Available |
|
Storage of splice result |
5000 results, 20 parameters per result |
|
Fiber image magnification |
300 times (X or Y), 150 times (X and Y); |
|
Display |
5.7 inch TFT color LCD monitor |
|
Tube heating program |
9 (templet),24(user) and the heater temperature can be set |
|
Tube typical heating time |
30 s (standard) |
|
Tension test |
2N |
|
Interface |

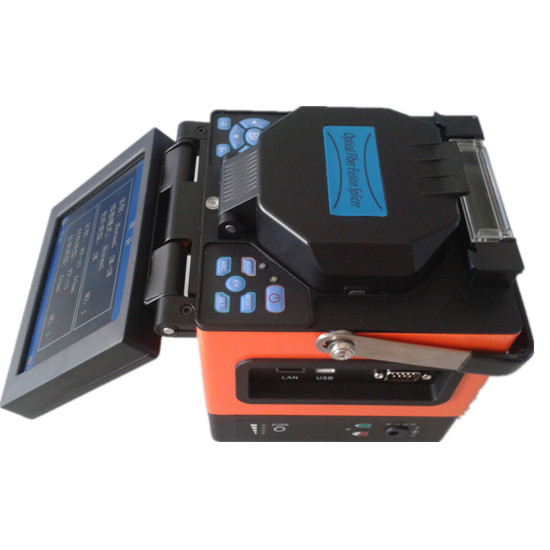

USB, RS232 and LAN |
|
battery Capacity |
Typical 240 cycles (splice/tube heat with inner Li-battery) |
|
Electrode life |
3,000 times |
|
Protection sleeve length |
60mm, 40mm and a series of micro tubes |
|
Operating condition |
0 to 5000m (elevation) 0 to 90% (humidity) -10 ~ 50℃ (temperature) |
|
Power supply |
Input voltage of AC adapter: 100-240V 50/60Hz, output voltage: DC13.5V/5A DC input voltage: 11-14V (built-in lithium battery 11600mAh) |
|
Dimensions |
150mm (length) × 150mm (width) × 150mm (height) |
|
Weight |
About 3 Kg (Including battery) |
|
Model and configuration |
||
|
|
OFS-50 |
OFS-50B |
|

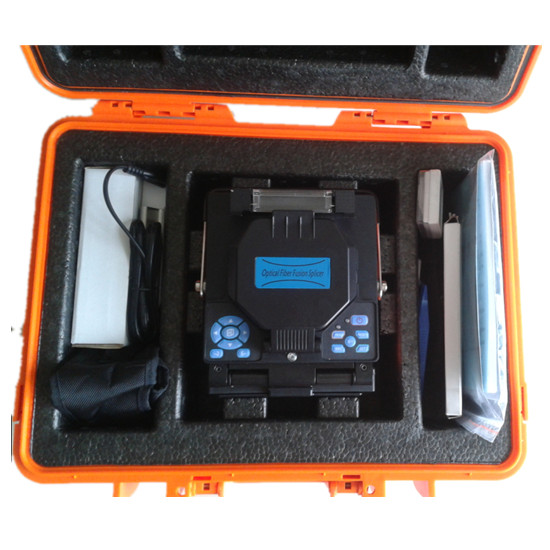

Main engine |
● |
● |
|
Fixture |
O |
● |
|
Rubber-covered wire stripper |
O |
● |
Notes: ● indicates standard configuration O indicates optional
|
Ordering information |
|||
|
|
Description |
Order number |
|
|
Model |
Main engine of optical fiber splice machine |
|
OFS-50 |
|
OFS-50B |
|||
|
language |
Chinese |
Model - Z |
|
|
English |
Model - Y |
||
|
AC power cord |
1 piece |
|
|
|
Certificate |
1 piece |
|
|
|
warranty card |
1 piece |
|
|
|
Inspection report |
1 piece |
|
|
|
Standby electrode |
1 pair |
|
|
|
Power adapter |
1 piece |
|
|
|
Plastic tweezer |
1 piece |
|
|
|
Cleaning brush |
1 piece |
|
|
|
Cooling tray |
1 piece |
|
|
|
Display shield |
1 piece |
|
|
|

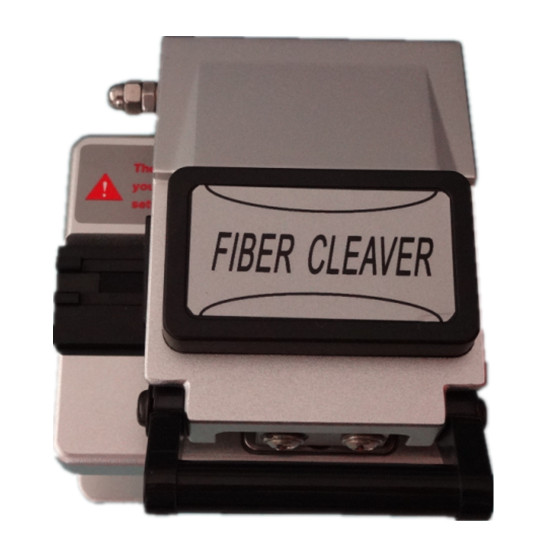

Fiber cleaver |
1 piece |
|
|
|
Fiber coat stripper |
1 piece |
|
|
|
Toolkit |
1 piece |
|
|
|
Options |
Electrode |
1 pair |
DJ-01 |
|
12-edge blade |
1 piece |
DP-01 |
|
|
CD |
1 piece (user manual and programming manual) |
