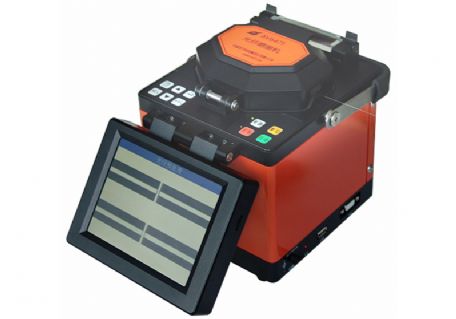

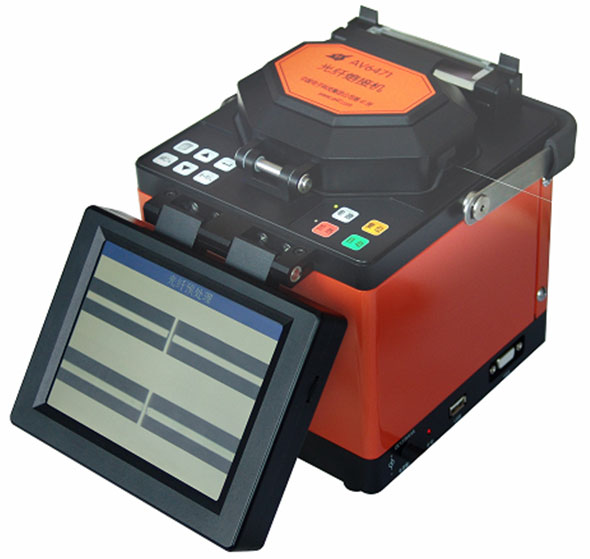

AV6471 is a new designed fiber splicing equipment. The powerful function and super low splicing loss make it be competent for the compact configuration and precise construction of trunk line and FTTX. Because of mechanism, it can adapt to execrable environment. The novel fiber imaging system make the image clearer and exquisiter. The real-time embedded sensors measured temperature, humidity and air pressure supply closed-loop feedback control, so the instrument can adopt all kinds atrocious circumstance and the consistency of splicing loss was improved.
Main Feature:
1. New fully-digitalized design
2. Small volume, light weight, only 2.8kgs include battery
3. 8 seconds splicing, 25 seconds Heat-Shrinking
4. Close shield splice automatically, Close heater, heat automatically
5. X/Y axes were displayed meanwhile, Magnification upto 304 times
6. Real time calibrating system for discharging, parameter needn’t be adjusted
7. Long Electrode Lifetime, up to 4000 times
8. USB and VGA ports
9. 5.7 inch digital high distinguish LCD
10. Battery capacity was display in real time. Precisely
11. Built-in high capacity battery. 220 times splicing and heating can be accomplished easily.
Technical Highlights:
HD Optical Image Acquisition System
ο HD aligner for double separate optical fibers
ο High performance CMOS sensor
ο Sensor pixels 640*480
ο Len Imaging Optical Fiber Aligning System
ο Fast evaluation of fiber profile
ο Precise fiber alignment
ο Precise evaluation of splicing loss
Real-time Discharging Correction System
O High performance discharging electrode
O AC-DC mix discharging technique
O Current feedback and environment compensation
Typical Application:
AV6471 Fiber Splicer mainly applied to fiber cable construction, fiber line maintenance, rush repair fiber cable and fiber device produce test.
Technical Parameter:
|
Main Technical Parameter |
|
|
Applicable Fiber |
SMF (ITU-TG..652), MMF(ITU-TG..651), DSF(ITU-TG..653) NZDSF |
|
Average Splicing Loss |
0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS) |
|
Return Loss |
<=60Db |
|
Operation Mode |
Auto, Half auto, Manual |
|
Align Mode |
Advanced PAS align mode |
|
Fiber Diameter |
Clad diameter; 80um ~150um, coating diameter:100um~1000um |
|
Cleave Length |
8~16mm(coating diameter<250um), 16um(coating diameter 250~1000um) |
|
Magnification |
Vertical 152times, horizontal 304 times |
|
Image Display |
5.7inch 640*480 LCD |
|
Pull Test |
Standard 2N (optional) |
|
Heat-Shrinkable Tube |
40mm, 60mm, and a series of micro Heat-Shrinkable Tubing |
|
Battery Capacity |
Typically splice 220 times, charging for 3.5 hour (available when charge) |
|
Battery Lifetime |
Cycle life up to 300~500 times, replaceable |
|
Electrode lifetime |
> 4000 times, replaceable |
|
Lighting for Construction |
Built-in super High-brightness LED supply convenience for night work |
|
Ports |
USB, VGA |
|
Power Supply |
Built in 11.1V Lithium Ion Battery AC adopter (input AC100~240, output DC13.5V/4.5V) |
|
Environment Adaptation |
Temperature range: -10centigrade ~50centigrade Humidity:95%RH(40centigrade No condensing);Altitude: 0~5000m |
|
Size |
L x W x H = 160 x 150 x 140 (mm) |
|
Weight |
2.3kg (no battery), 2.8kg(include battery) |
Standard Equipment
|
Key |
Description |
QTY |
|
1 |
AV6471 Fiber Splicer |
1 |
|
2 |
AC power adpoter |
1 |
|
3 |
AC current cable |
1 |
|
4 |
Standby electrode |
1 |
|
5 |
Blower brush |
1 |
|
6 |
Bottle with siphon |
1 |
|
7 |
Fiber bracket |
1 |
|
8 |
User’s manual |
1 |
|
9 |
Luxury tote kit |
1 |
Optional Equioment
|
Key |
Description |
Remark |
|
1 |
Fiber Cleaver |
AV33012 |
|
2 |
Li-Ion battery |
11.1/10AH |
|
3 |
Tool kit |
/ |
