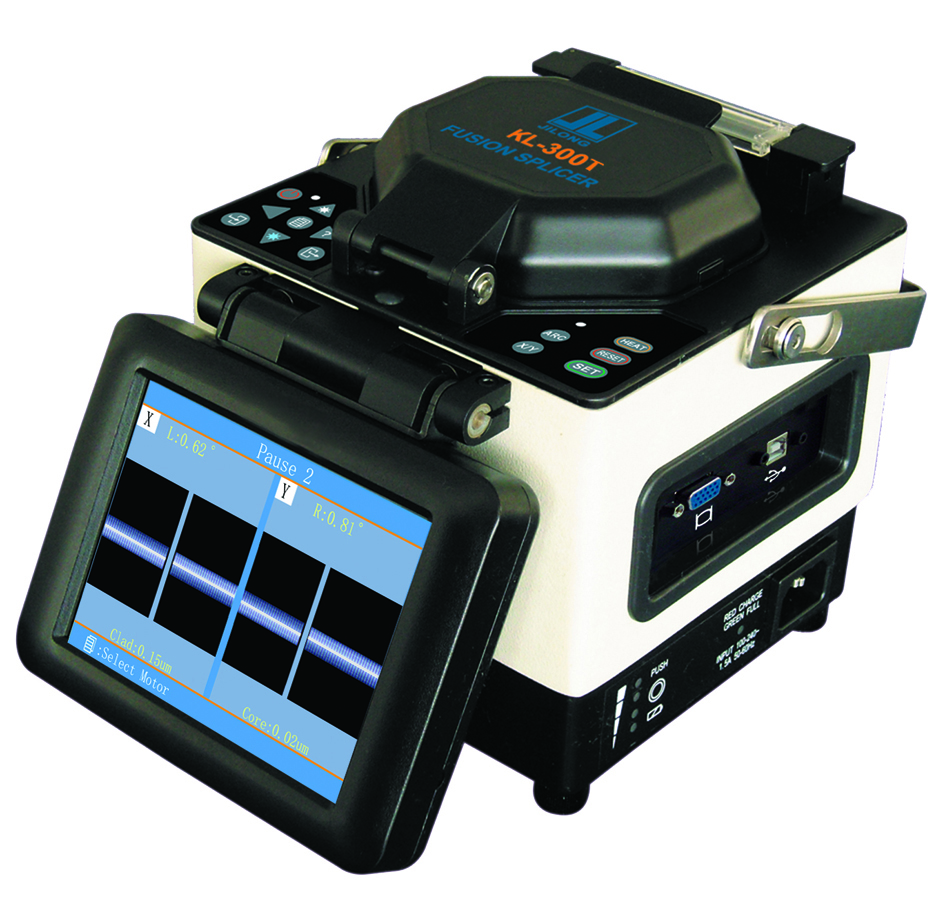

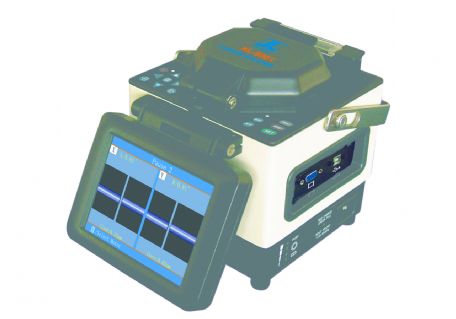

BRAND：JILONG
Features:
-Core to core alignment by PAS technology ( PAS:Profile Alignment System)
-Digital fusion splicer with automatic focus function
-Fiber core can be display clearly
-Single X or Y view and X & Y view simultaneously
-Auto detect cleaved endface fault
-Display fiber cleaved and offset angle
-Display core and clad offset
-5.6 inch TFT color LCD monitor with clear digital image display
-USB & VGA interface
-Software upgrade via USB interface
Specifications:
|
Model |
KL-300T |
|
Applicable fibers |
SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655) |
|
Fiber cleaved length |
8~16mm(Coating diameter:250nm) 16mm(Coating diameter: 250 ~ 1000nm) |
|
Fiber diameter |
Cladding diameter:80 ~150nm Coating diameter:100~ 1000nm |
|
Fiber Count |
Single |
|
Fiber aligning method |
Core or clad aligning |
|
Image processing method |
Digital |
|
Actual average splice loss |
0.02dB (SM),0.01dB (MM), 0.04dB (DS),0.04dB( NZDS) |
|
Splicing time |
Typical 9 sec,with standard SM fiber |
|
Splicing mode |
53(templet), 40(user) |
|
Splice loss estimate |
More accurate |
|
Return loss |
not less 60dB |
|
Storage of splice result |
4000 results,20 parameter per result |
|
Fiber display and magnification |
300X(X or Y view),150X(X and Y view) |
|
Tube heating time |
Typical 30 sec |
|
Tube heating mode |
9(templet), 24(user) |
|
Tube heating temperature |
Can be adjusted |
|
Applicable Protection sleeve length |
60mm, 40mm and a series of micro sleeves |
|
Tension test |
2N |
|
Electrode life |
2500 |
|
No.of splice/heating with battery |
Typical 150 cycles (splice/tube heat) with inner Li-battery |
|
Display screen |
5.6 TFT inch color LCD monitor |
|
Image change over |
The fiber image is turned upside down |
|
Terminals |
USB 1.1 and VGA |
|
Operating condition |
0 ~ 5000m above sea level,0 ~ 95%RH and -10~50,respectively,Max. wind velocity of 15m/s |
|
Power supply |
AC 100-240V with AC adapter;inner Li-battery(6600mAH) |
|
Dimensions |
150mm(L) x150mm (W) x150mm (H) |
|
Weight |
2.7 Kg excluding battery,3.2 Kg including battery |
