BRAND：Anritsu
Description:

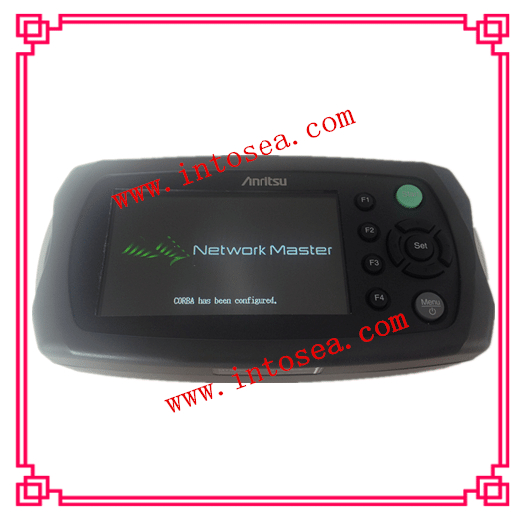

The Anritsu NetWork Master is a palm-size, lightweight fiber optic OTDR that you can use for a wide range of fiber optic testing applications. This fiber optic OTDR is especially well suited for testing systems that have relatively short fiber spans. With a data sampling interval of five centimeters and a deadzone of <1 meter, you will find that this fiber optic OTDR is perfect for testing FTTx and intra-building cables. You can utilize the CWDM module to measure and view 18 channels (ITU-T G.695 and G.694.2) for both wavelength and power level. This fiber optic OTDR provides you with over 3.5 hours of battery life and features a bright 4.3” color display for superior visibility whether you are working indoors or outdoors.
The Anritsu MT9090 Fiber Optic OTDR complements the extensive line of hand held fiber optic test equipment available from FIS. These include fiber optic Light Sources, Power Meters, OTDR's, Loss Test Sets, Visual Fault Locators as well as Continuity Testers.
Features:
●Palm-Size and Lightweight
●5 Centimeter Sampling Interval, Deadzone <1 Meter
●Ideal for Testing FTTx and Intra-Building Cables
●CWDM Module Measures and Displays 18 Channels
●3.5 Hr. Battery Life
●Bright 4.3” Color Display
Specification:
|
Dimensions and Mass |
190 (W)mm x 96 (H)mm x 48 (D)mm (7.5”x3.8”x1.9”) (Including mainframe and module) |
|
Display |
4.3 inch TFT-LCD (480x272, with backlight, transparent type) |
|
Interface |
USB 1.1, Type A x1 (memory), Type B x 1 (USB mass storage) |
|
Model |
MU909011A, A1, A2, A3-052/062MU909011A, A1, A2, A3-050/060 |
|
Wavelength +1 |
780±20 nm 1550±30 nm |
|
Fiber Type |
10/125 um SMF (ITU-T G.652) |
|
Distance Range |
1.0 km (3,000 ft) or 2.5 km (8,000 ft)
1.0 km (3,000 ft), 2.5 km (8,000 ft) or 10 km (32,000 ft) |
|
Pulse width |
<10 ns |
|
Dynamic Range +2 |
7.0 dB |
|
Deadzone |
Fresnel: <1 m+3, Backscatter: <5 m+4 |
|
Sampling Resolution |
5 cm (Distance range 1.0 km), 10 cm (Distance range 2.5 km) (IOR=1.50000) |
|
Sampling Points |
20001 (Distance range 1.0 km), 25001 (Distance range 2.5 km) |
|
Data Storage |
Internal memory:40 MB (up to 800 traces), External (USB): up to 20,000 traces with 1GB |
|
IOR Setting |
1.3000 to 1.7000 (0.0001 steps) |
|
Units |
ft, m |
|
Fiber Event Analysis |
Automatic, displayed in table format based on user defined PASS/FAIL thresholds |
|
Loss Modes |
2 point loss, dB/km |
|
OTDR Trace Format |
Telcordia universal (.SOR), issue 2 (SR-4731) |
|
Other Functions |
Integrated launch fiber: 10 m (30 ft) |
|
Connector Inspection Microscope (Optional); verifies connector condition and clealiness |
|
|
Connection check: Automatic check of OTDR to FUT connection quality |
|
|
Live Fiber detect : verifies presence of communication light in optical fiber |
|
|
Real time sweep: <1sec (typical) |
|
|
Languages |
Spanish, French, German, Italian, Simplified Chinese, Traditional Chinese and English |
|
Integrated Optical Power Meter
|
Wavelength 1550 nm, same port as OTDR |
|
Power range:–5 to –45 dBm, Accuracy:±0.5 dB*5, Maximum input:+10 dBm |
Optional:
|
Visible Laser Diode (Optional) |
Connector: 2.5 mm universal, Wavelength: 650±15 nm, Output: 0±3 dBm Laser safety: IEC Pub 60825-1: 2001 Class3R: MU909011A1/A3-050/060/052/062*9 (CW) |
|
Power Supply |
9 VDC, 100 to 240 VAC, Allowable input voltage range: 90 to 264 V, 50/60 Hz |
|
Battery |
NiMH, Operating Time: 3.5 hours (typical)*6, Recharge Time:<3 h*7 |
|
Environmental Conditions |
Operation: 0o to +50oC, <80% (non-condensing)*8, Storage: –20o to +60oC |
|
EMC |
Vibration: MIL-T-28800E Class 3, Dust and Drip proof: IP 51 |
|
Laser safety |
EN61326 |
|
IEC Pub 60825-1: 2001 Class1: MU909011A/A1/A2/A3-050/060/052/062*10 |
