Model：OPM-701/OPM-702

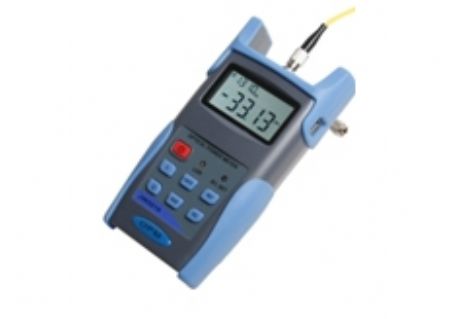

OPM-700 Handheld Optical Power Meter is a newly designed fiber optic tester, which aims
at the installation, engineering acceptance and maintenance of fiber network.
Compared with other usual power meters, the OPM700 has more functions, like automatic
wavelength identification, auto wavelength switching, intelligent backlight, data saving via
USB port.Combined with OPM-700 handheld optical light source, it offers a quick and
accurate testing solution on both SM and MM fibers.
OPM-700 Optical Power Meter Features
Wave IDAuto wavelength identification & switching
Frequency ID ---Auto frequency identification
2 types of backlight modes, manual or outside light intensity, which indicated by LED light
red or blue color.
Intelligent backlight
1000 records storage or download via USB cable
USB communication port for saved testing records download
Reference power level can be set up and stored
User self-calibrating function
Auto-off function
Up to 200hrs battery life
OPM-700 Handheld Optical Power Meter Specifications
|
|
||
|
Model |
OPM-701 |
OPM-702 |
|
Calibrated Wavelength(nm) |
850/1300/1310/1490/1550/1625 |
|
|
Detector Type |
InGaAs |
|
|
Measurement Range (dBm) |
-70+6 |
-50+26 |
|
Uncertainty (dB) |
0.153.5% |
|
|
linearity (dB) |
0.02 |
|
|
Display resolution(dB) |
0.01 |
|
|
Frequency IDHz |
2703301K2K |
|
|
Wave ID(nm) |
1310149015501625 |
|
|
Date Storage Capacity |
1000 |
|
|
Communication Port |
USB |
|
|
Connector |
FC/SC/ST Interchangeable |
|
|
Alkaline battery |
3*AA1.5V |
|
|
Power Adapter(V) |
8.4 |
|
|
Battery Operating time (h) |
200 without backlight |
|
|
Operation Temperature(℃) |
-10°+60 |
|
|
Storage Temperature(℃) |
-25°+70 |
|
|
Dimension(mm) |
175*90*44.5 |
|
|
Weight(g) |
231 |
|
OPM-700 Handheld Optical Power Meter Packages
OPM-700 Optical Power Meter, 3pcs 1.5V Batteries, Power Adapter, User Manual,
USB cable, CD, Cotton Stick and Soft Carrying Case.
